Description
World´s smallest 2 TAP Nitro Dispenser
Width: 18 cm (7.087 inches)
Length: 40 cm (15.75 inches)
Height: 49 cm (19.29 inches)
Weight: 21 kg (46.3 lb.)

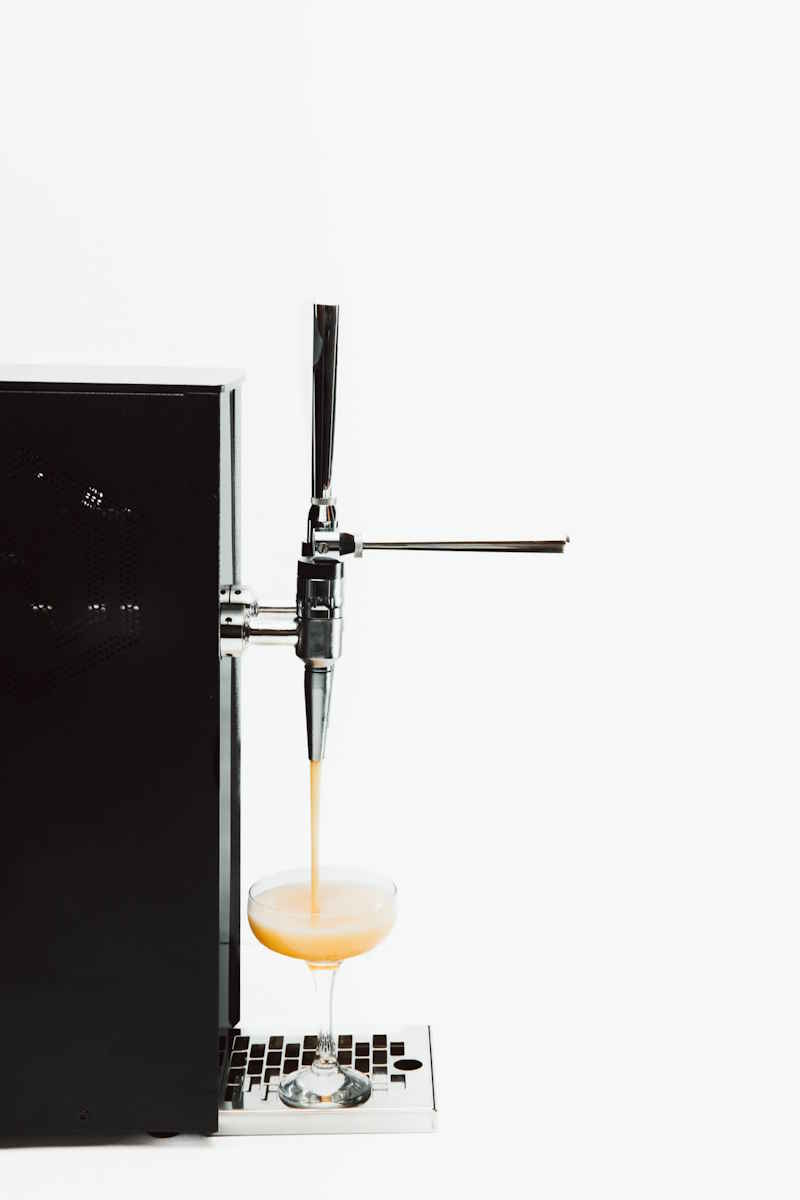

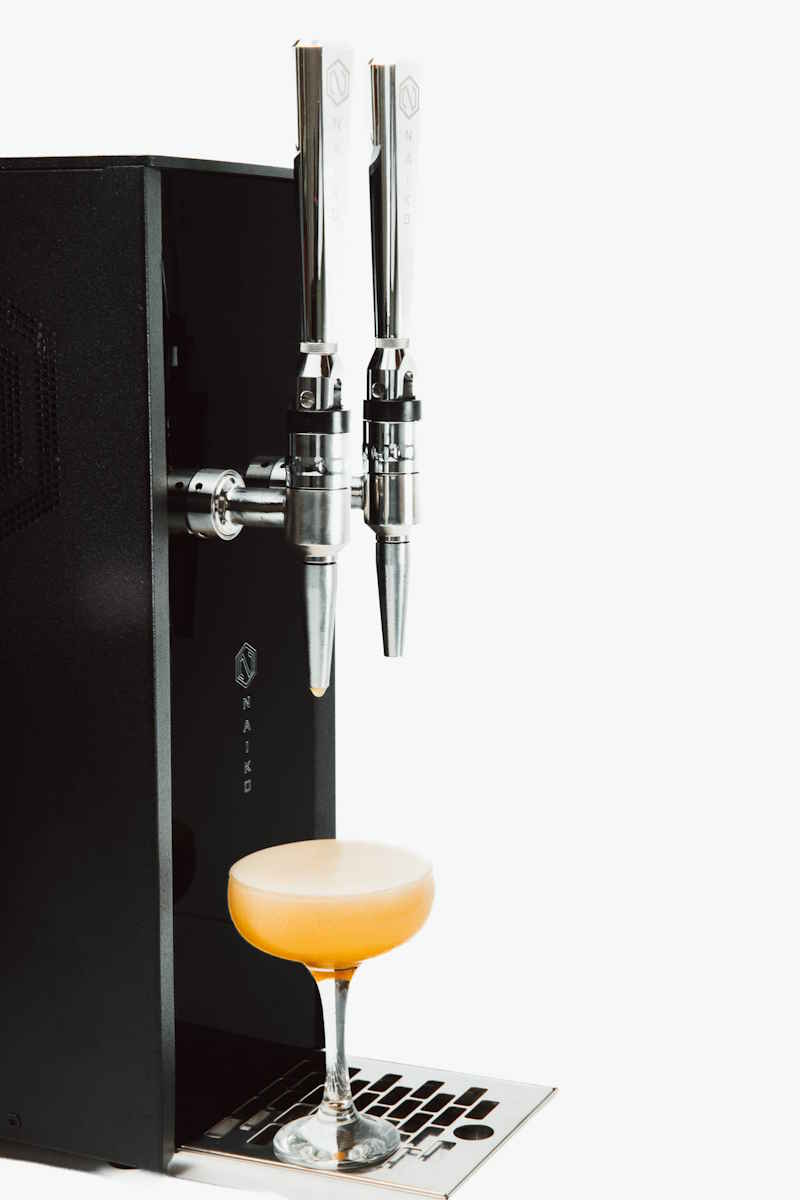

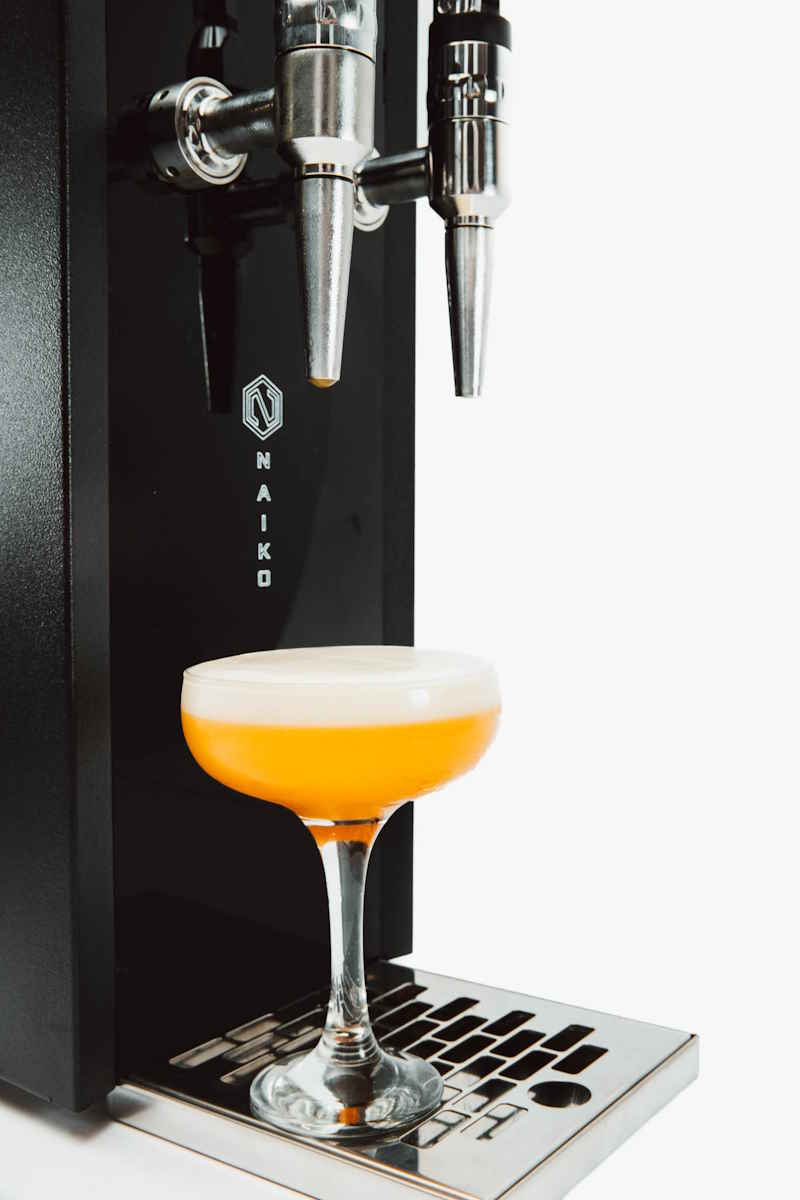

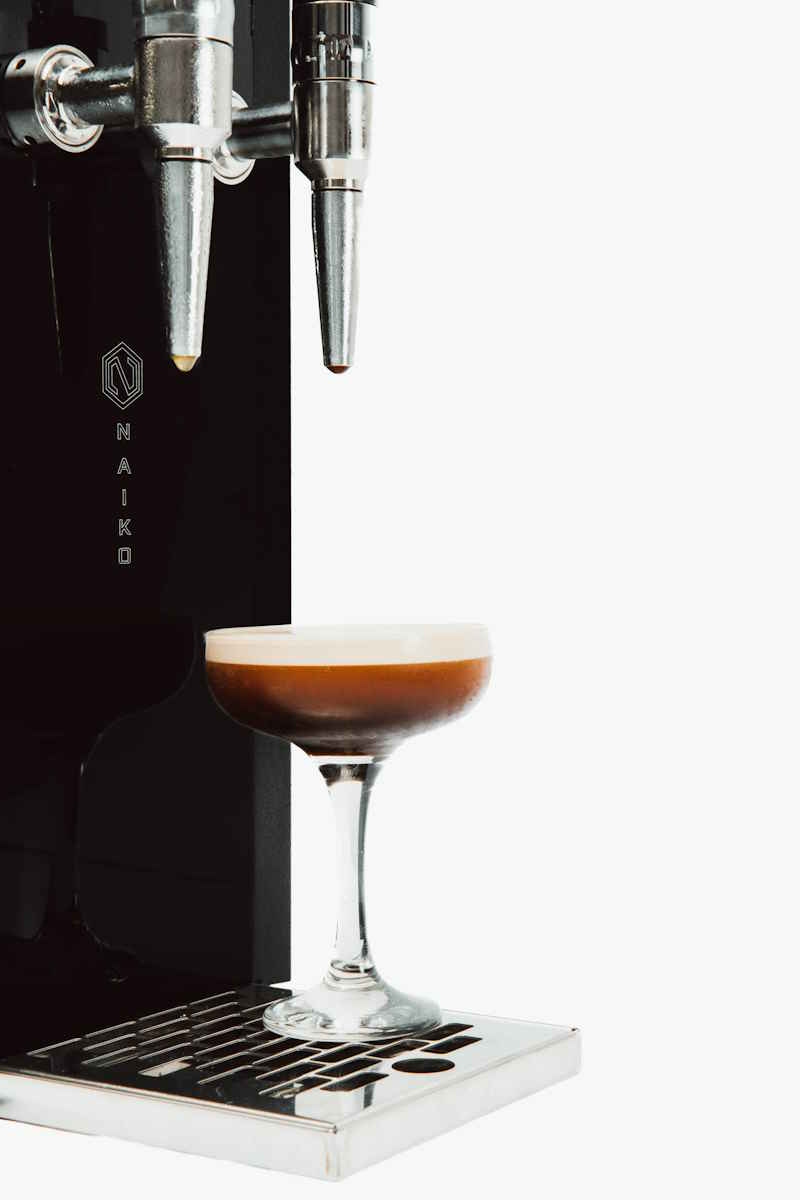

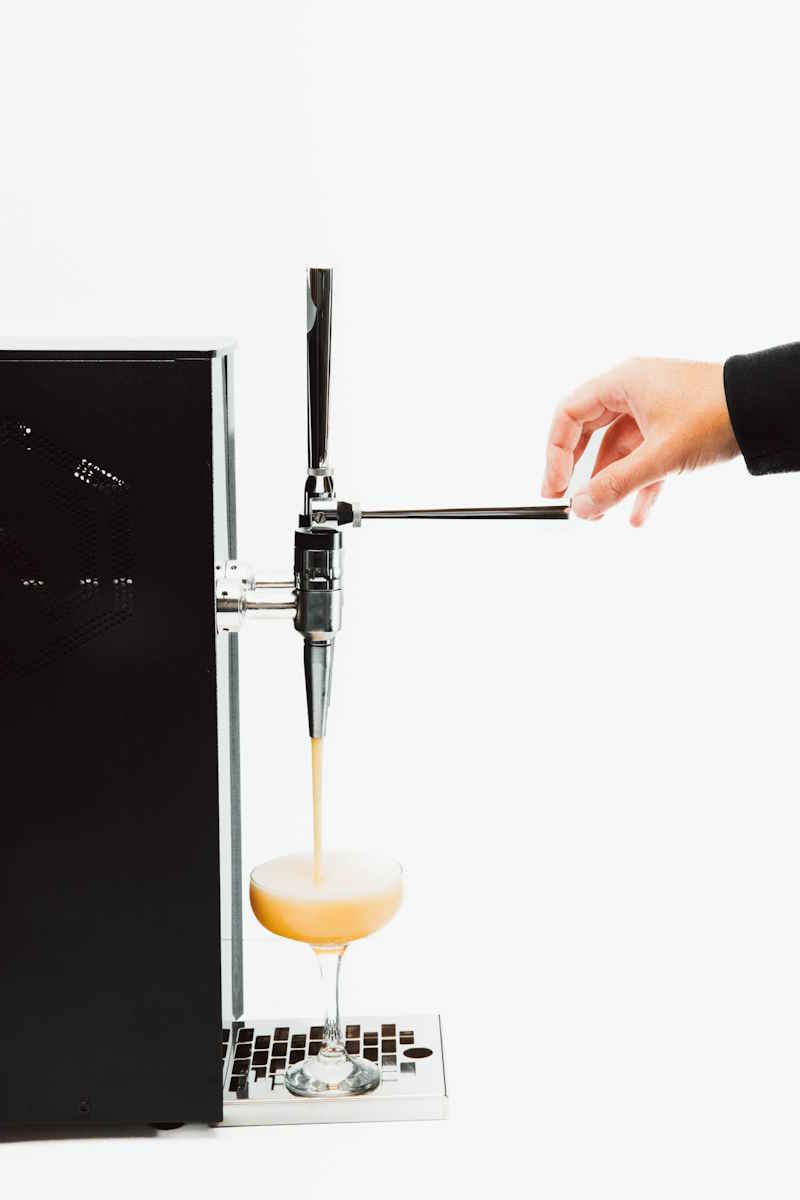

Naiko Nitro 2 TAP Espresso Martini Machine
Request a Quote (free)
- Description
- Technical Highlights
- Available models
- Technical Data
- Installation Requirements
- Scope of delivery
- Advantages Naiko Dispenser
Technical Highlights
Injection of atmospheric nitrogen from ambient air to save money on transportation and storage of heavy nitrogen gas tanks.
No external nitrogen supply needed and therefore no need to store nitrogen gas cylinders.
Enjoy creamy, velvety smooth drinks without the hassle of transportating gas cylinders or run out of nitrogen gas.
Integrated environmentally friendly coolant (R290) to chill the beverage down to 2°C / 35 °F
Innovative jet-nozzle infusion technology for creamy, velvety and smooth nitrogenated coffees or beverages.
Pulls from any container, tank or keg.
Available models
Voltage // frequencies // phases:
100 V // 50 Hz // 1~
100 V // 60 Hz // 1~
110 – 127 V // 60 Hz // 1~
220 – 240 V // 50 Hz // 1~
220 – 240 V // 60 Hz // 1~
Colors:
black
Technical Data
- Width 18 cm (7.087″) x Height 49 cm (19.29″) x Depth 40 cm (15.75″)
- Weight: 21 kg
- Nitrogen source: Atmospheric nitrogen (no external supply required, no gas tanks)
- Injection pressure: 4.0 bar / 58 psi for long lasting nitro cascade
- Cooling technology: Dry cooler R290
- Cooling power: 400 Watt
- Dispensing capacity: up to 20 liters per hour
- Target temperature: -1°C (30 °F)
- Pulls from any container (with self-priming pump)
Installation Requirements
- Electric socket
- Space required for setting up the machine: Width 18 cm (7.087″) x Length 40 cm (15.75″)
- Tabletop requirements: Minimum load capacity of 25 kgs with the surface being smooth
- Beverage line: 5/16 inch (included)
Scope of delivery
1 x Naiko Nitro Dispenser (Plug&Play)
1 x drip tray (15 cm x 19 cm) with stainless steel plate
1 x 5-liter container
1 x 5/16″ beverage tube (length: 2 m)
2 x cleaning packets (á 45 g)
1 x instruction manual
1 x power cord (length: 2 m, plug according to country of delivery)
Advantages Naiko Dispenser
Simple and reliable construction
· No auxiliary media (nitrogen) required / just electricity
· Simple modulare set-up
· Compact system with low space requirements
· Easy to set-up and start
· Durable design guarantees long working life even in extreme conditions
Economic solution
· No installation costs
· Short installation time (Plug&Play)
· Low operational costs
· Low maintenance requirements (just regular cleaining)
Flexible Application
· Modular design allows easy expansion
· Flexible integration
· Easy to adjust nitrogen injection
· Easy to adjust temperature
Improving safety
· No risks associated with handling gas cylinders
Environmental friendly benefits
· Use of ambient air through compression and filtration unit
· No need for external nitrogen supply and transport of gas cylinders
· Use of environmental friendly refrigerant R290 (Propane)
· No additional supply materials required
